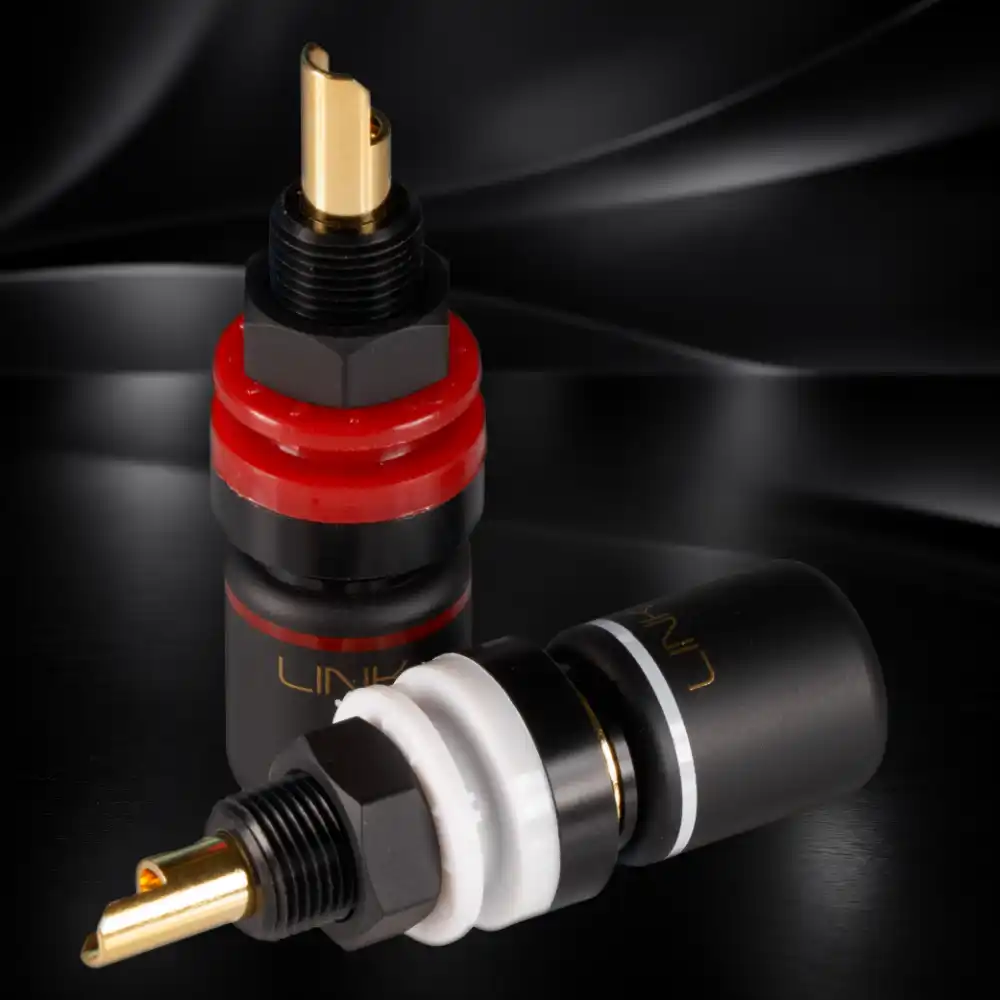

ETI Research LINK Binding Post

The ETI Research LINK Binding Post is designed for high-current loudspeaker applications where conductivity, mechanical security and low electrical losses are important. Its construction balances the material needed for reliable power handling with a low-mass design intended to minimise capacitance, inductance and resistance throughout the connection.

The major conductive components of the ETI Research LINK Binding Post are manufactured from Tellurium Copper and finished with gold plating for high conductivity and long-term durability. The hollow copper body is precision lathed from a single piece, removing unnecessary material while retaining the strength required for demanding amplifier and loudspeaker applications.

A concave connection area provides secure contact when terminating bare wire, while the polymer assembly separates the brass housing from the copper connector. This arrangement also allows additional tightening pressure to be applied when using spade connectors, enabling a firm connection with finger pressure rather than excessive force.

The outer brass housing provides vibration damping together with effective EMI and RF noise rejection. Combining Tellurium Copper, low-mass construction, secure cable termination and mechanical isolation, the ETI Research LINK Binding Post is suited to amplifier and loudspeaker manufacturers as well as high-performance audio systems. The ETI Research LINK Binding Posts are supplied in packs of four.
