Zavfino Copperhead Turntable

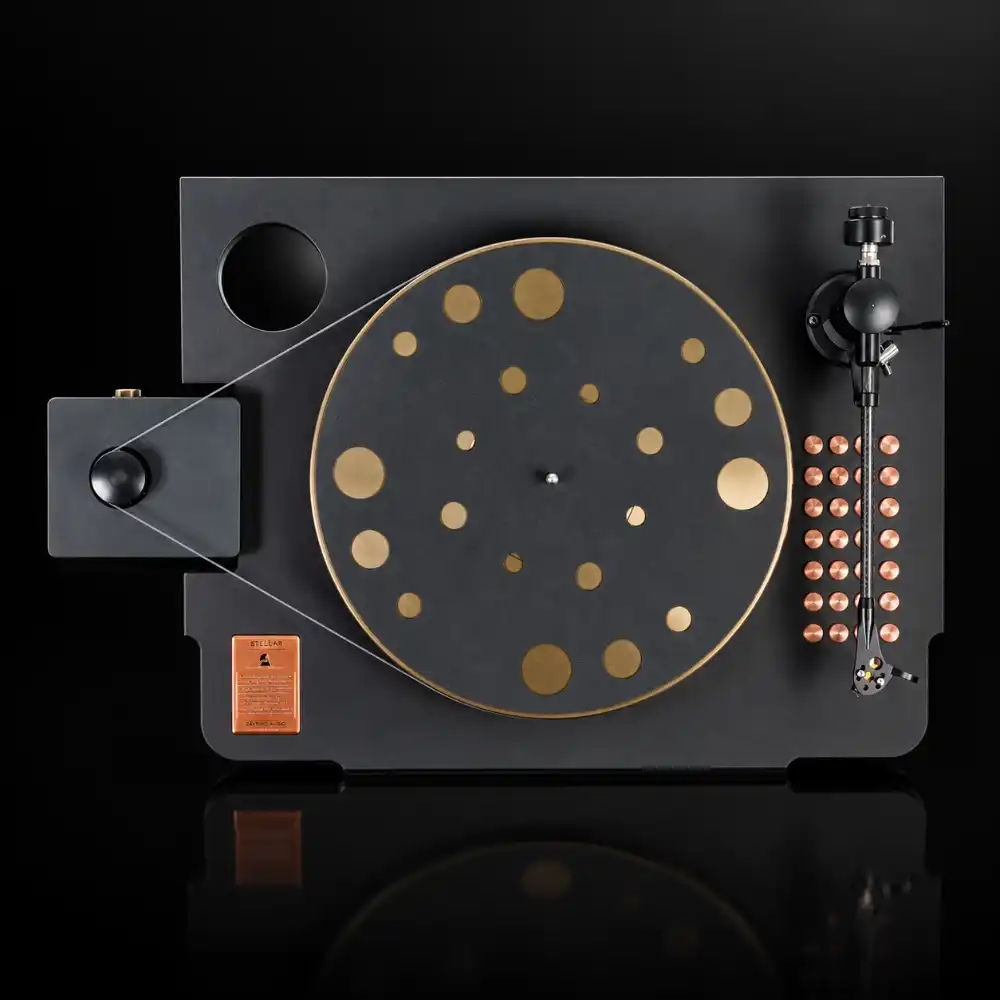

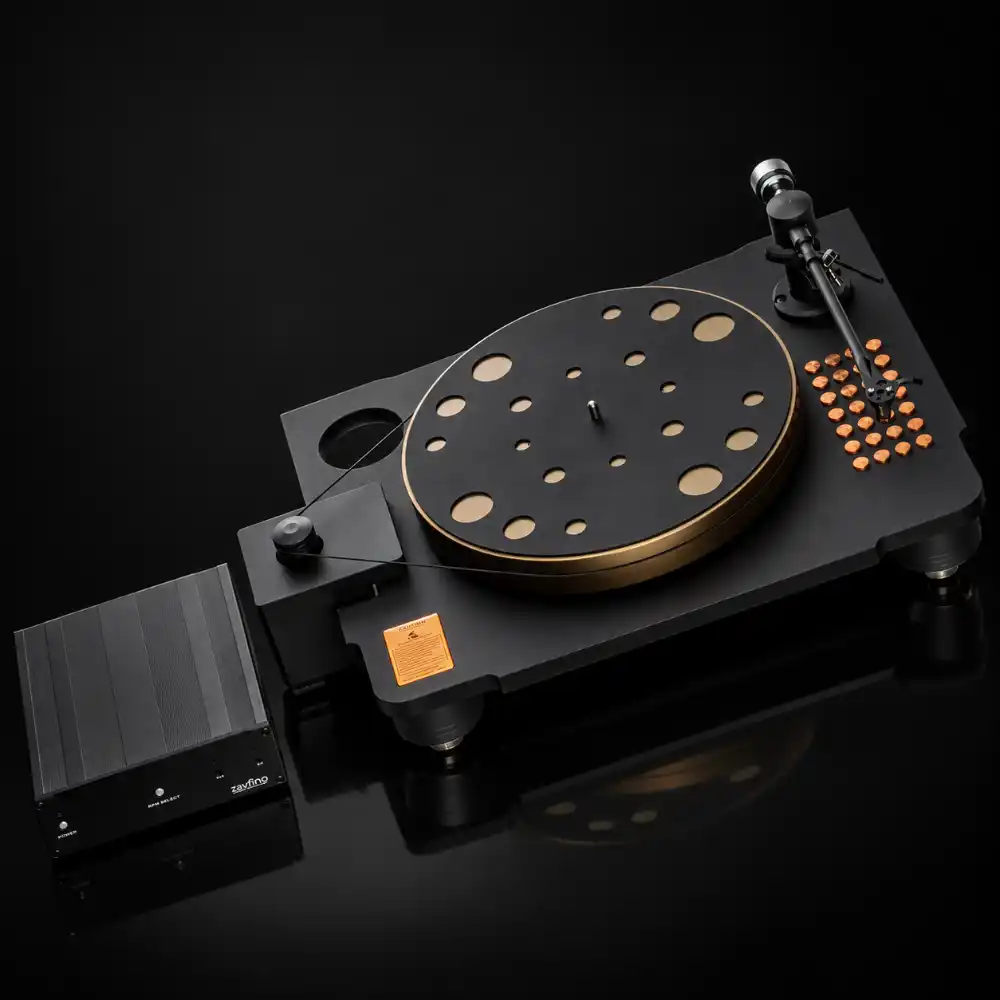

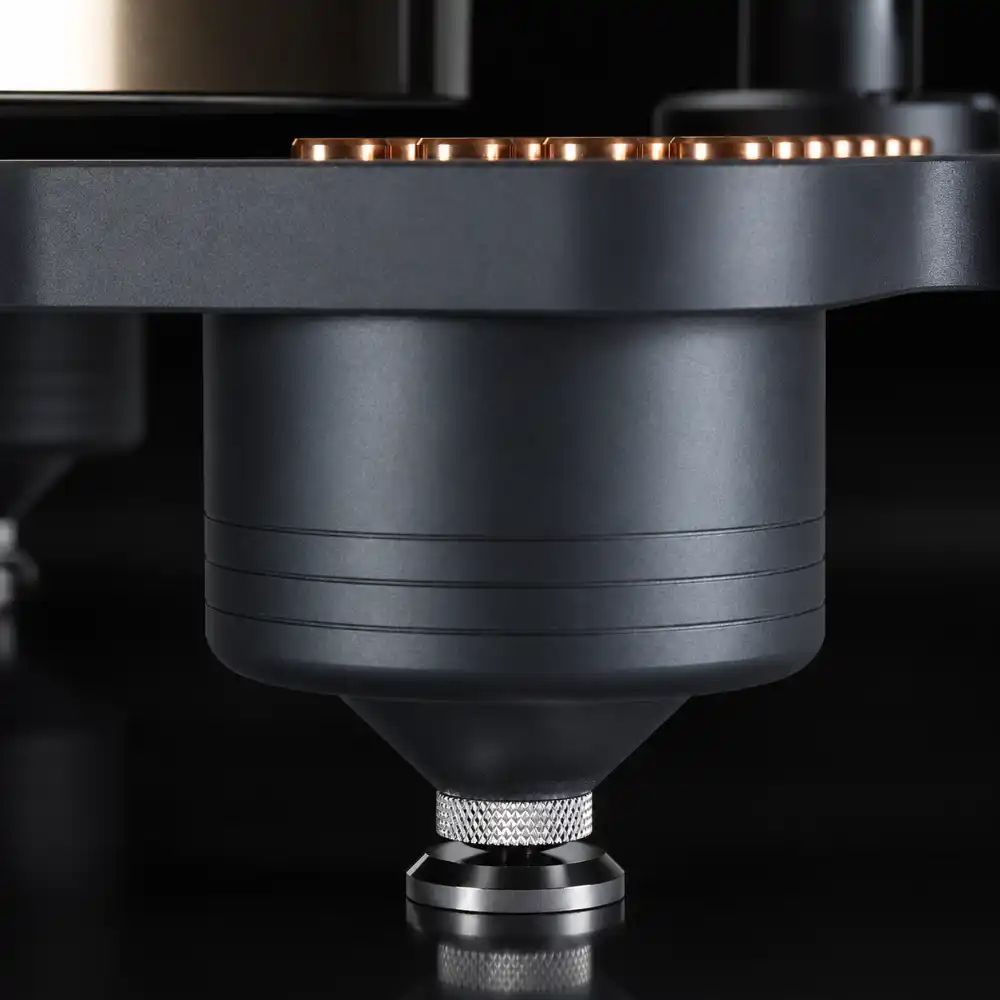

The Zavfino Copperhead Turntable has a solid 6061 aluminum plinth in satin black supported by three large POM feet to absorb vibration. In total, the plinth uses a mixture of Aluminum, POM, Acrylic, and pure Copper Slugs to effectively deaden it against vibration

The platter is machined Aluminum billet that is Diamond Cut on the top side and contoured machined on the underside to dissipate vibration.

Motor housing is machined out of a solid block of aluminum and is completely independent of the Copperhead Plinth. ​It houses a 16V low torque motor that uses a universal power supply.

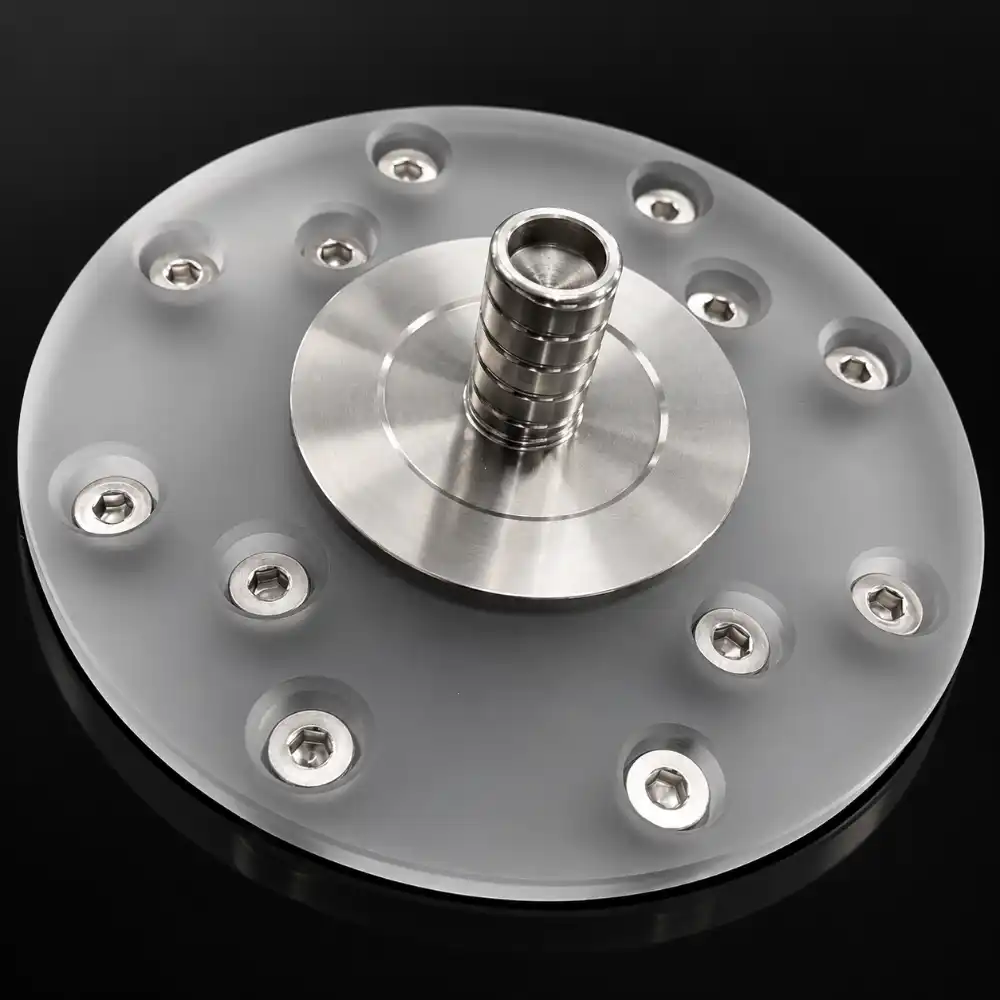

The Central Bearing is a two-piece solid stainless steel with a copper bushing, ceramic ball bearing, and a Teflon thrust plate. The bearing cap has silicone dampening rings between the bearing and aluminum platter. The table bearing sits in a 20mm acrylic anti-vibration disc isolating the bearing from the plinth further decreasing and standing wave vibration. The disc is locked into place with a combination of  PA-66 nylon and stainless steel screws effectively decoupling the bearing and platter from the plinth.​

The Zavfino Copperhead has a fully independent motor supply in a 1.8kg  block aluminum housing regulated by an AC regenerating circuit, which allows for a perfect AC current that can be slightly adjusted for a perfect  33.3rpm and  45rpm operation. Also standard is the Zavfino Aeshna  Aluminum arm with a second optional arm socket for other manufacturers’ arms up to  10.5 inches.

 ​
